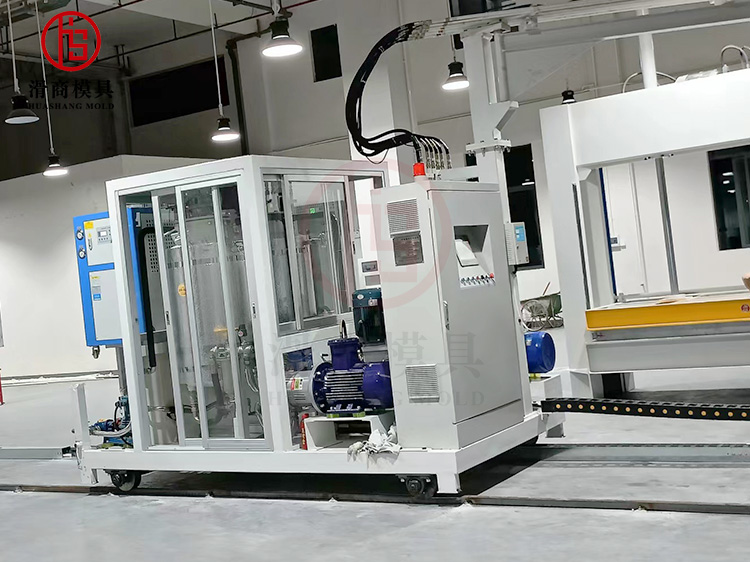

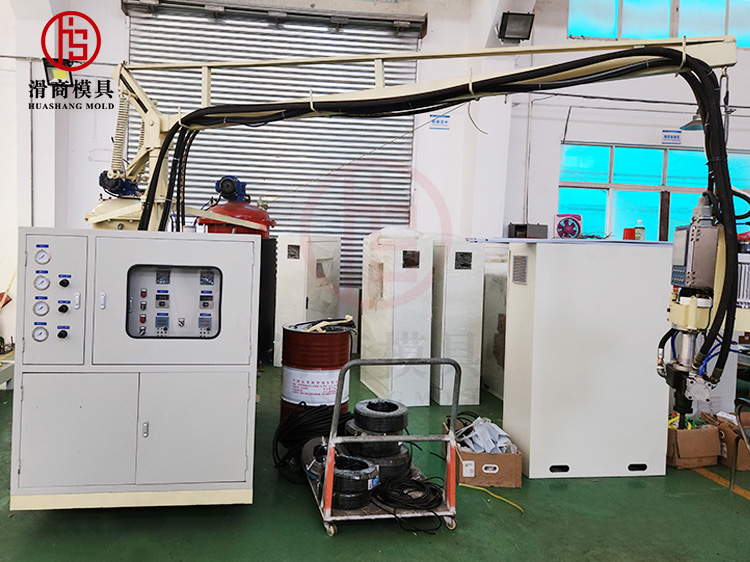

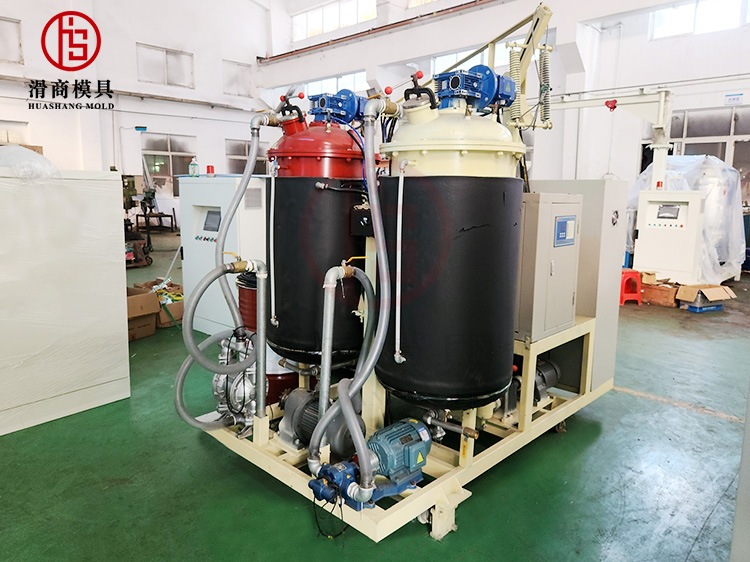

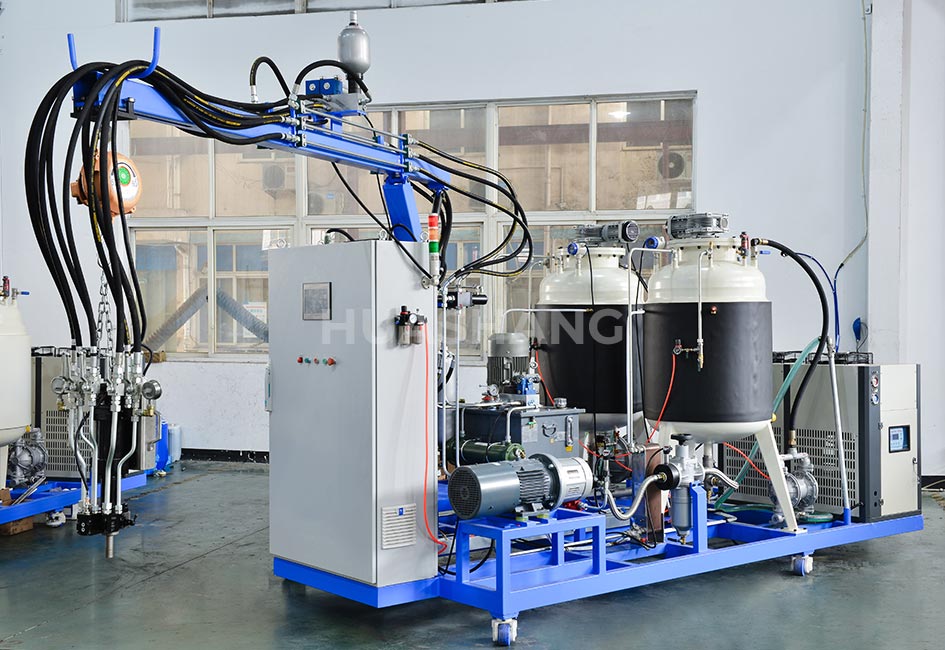

High pressure foaming machine PU artificial stone slab manufacturing machine
High pressure foaming machine PU artificial stone slab manufacturing machine
High pressure foaming machine PU artificial stone slab manufacturing machine
High pressure foaming machine PU artificial stone slab manufacturing machine
High pressure foaming machine PU artificial stone slab manufacturing machine
High pressure foaming machine PU artificial stone slab manufacturing machine
High pressure foaming machine PU artificial stone slab manufacturing machine

High pressure foaming machine PU artificial stone slab manufacturing machine

Our machines can be customized to various yields and mixing ratios according to customer requirements.

These PU foaming machines can be used in various industries such as furniture industry, building materials, etc. Our machines are the choice of novice and long-term users.

PU light cultural stone is a new type of decorative material, also known as polymer material, referred to as PU, is a new type of green decorative material, oil resistance, wear resistance, low temperature resistance

Product Introduction



Advantages

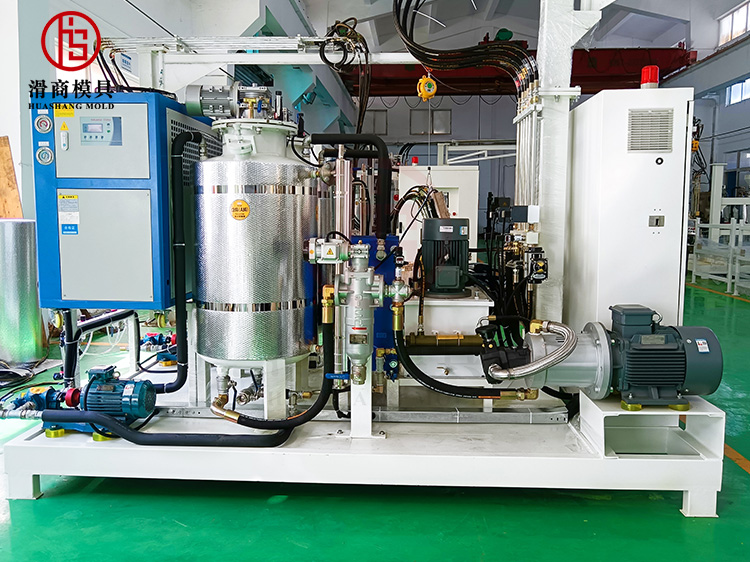

Polyurethane foam machine is a special equipment for polyurethane foam injection and foaming. As long as the polyurethane components, raw materials (isocyanate components and polyether polyol components) performance indicators meet the requirements of the formula. Through the foaming equipment, uniform and qualified foaming products can be produced.

HuaShang is designed with a touch screen, and the filling process directly monitors parameters such as station, pressure, yield and curing time.

PU equipment ingenuity, strength factory, the industry has been deeply cultivated for many years, from the quality of sound service system, won a number of domestic and foreign certification, promote energy saving and environmental protection industrialization!

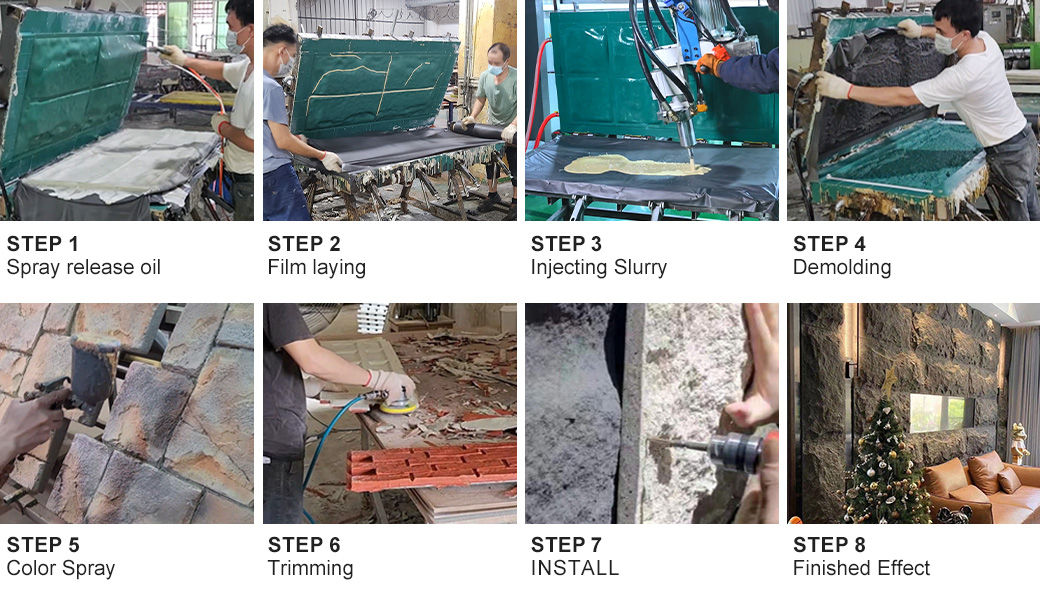

Production Process

Parameter

Serial number

item

Technical parameter

1

Applicable foam type

F11, 141B, all water (cyclopentane free)

2

Applicabler aw material viscosity (20℃)

Polyetherpolyol POL :~2500MPas

Polyisocyanate ISO :~1000MPas

3

Injection pressure

6~20Mpa(adjustable)

4

Injection flow rate (mixing ratio 1:1)

100 ~ 500 g /s

5

Mixing ratio range

1:3 (adjustable)

6

volumelnioction

8o-9999 grams

7

Materialtemperature control error

±2℃

8

8Repeated injection accuracy

1000 gs士1%

9

Hydraulicsyoten

Flow rate 10 L/min System pressure 15~28MPa

10

Mioing head

flt.mj- 1218.2k

11

Hydralicailtenpcrare

<50°℃(returmn oil cooling)

12

12Tank volume

300升

13

13 Compressed air requirement

Dry without oil P:0.5Mpa Q: 600NL/min

14

14Temperature control system

Cold and heat exchange system of hot and cold water un it

15

Stationary pump motor

Power :5.5Kw Speed: 1450r/m

16

Floor space

3200"1900[can be customized according to customer needs)

17

Total weight

23KW(nodual conversion power saving function)

18

machine

Abourt 2tans

19

19Use power

380v 50HZ

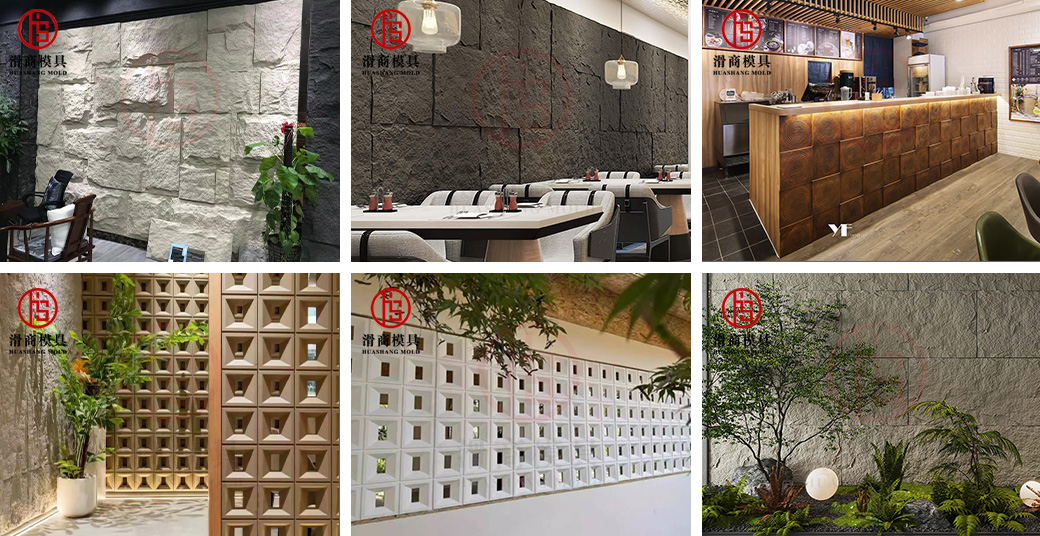

Application Scenario

Our services

We are a specialized new environmental protection building materials manufacturer, engaged in PU and flexible stone series solutions, not only to provide equipment production, manufacturing, but also to provide customers with product technology transfer, experience teaching;

In addition, we also support new customers to build factories, select and match suitable product lines; Solve every customer production problem.
